AP6212 series is a low-cost and low-power consumption module which has all of the WiFi and Bluetooth functionalities. The highly integrated tiny module makes the possibilities of web browsing, VoIP, Bluetooth headsets and portable navigation applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11b/g/n Access Points in the wireless LAN.

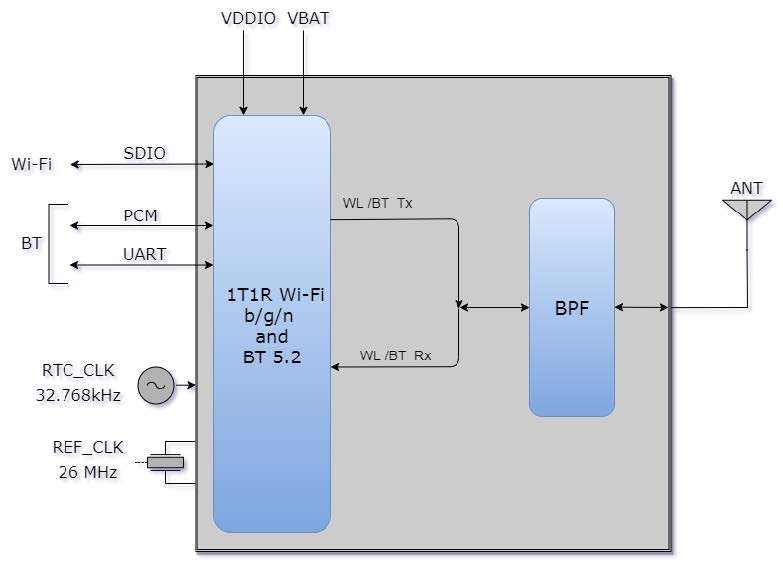

The module complies with IEEE 802.11 b/g/n standard and it could achieve up to a speed of 72.2Mbps with single stream in 802.11n, 54Mbps as specified in 802.11g, or 11Mbps for 802.11b to connect to the wireless LAN. The integrated module provides SDIO interface for WiFi, UART / PCM for Bluetooth.
This compact module is a total solution for a combination of WiFi + BT technologies. The module is specifically developed for Tablet, Smart phones and Portable devices.
| Model Name | AP6212 / AP6212A |
| Product Description | Support Wi-Fi/Bluetooth functionalities |
| Dimension | L x W x H: 12x 12x 1.5 (typical)mm |
| Wi-FiInterface | SDIOV2.0 |
| BT Interface | UART/ PCM |
| Operating temperaturea,b | -30°Cto 85°C |
| Storage temperature | -40°Cto 125°C |
| Humidity | Operating Humidity 10% to 95% Non-Condensing |
- a. The operating temperature 65 to 85°Cis feasibleat conditional environment. Please examine the reliability on final product.
- b. Functionality is guaranteed across this range of temperature. Optimal RF performance as specified in the data sheet, however, is guaranteed only for –10°C to 55°C and 3.2V < VBAT <3.8V
